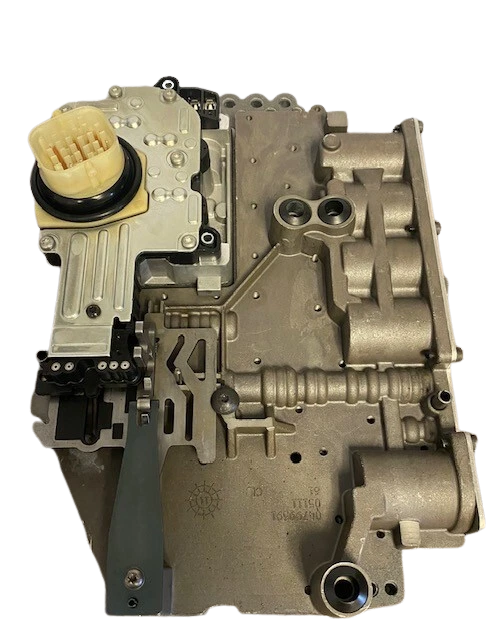

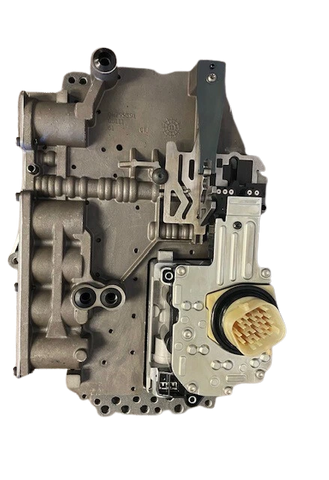

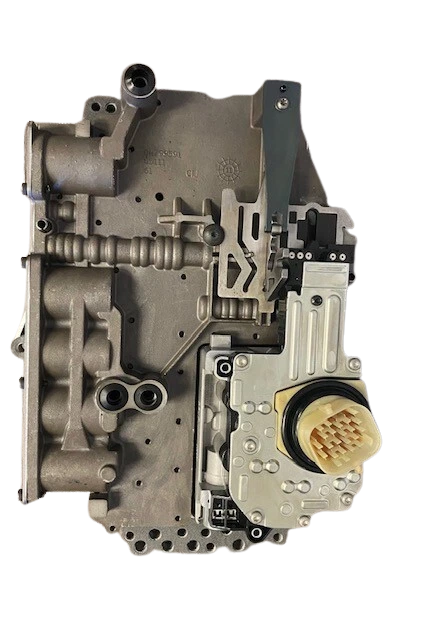

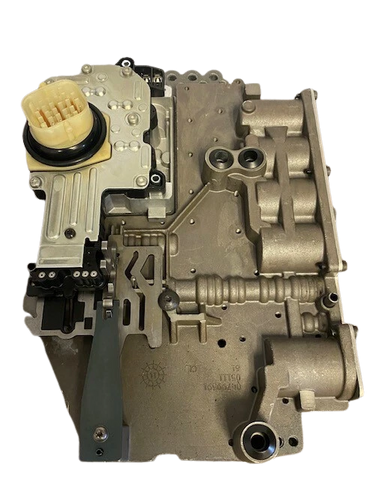

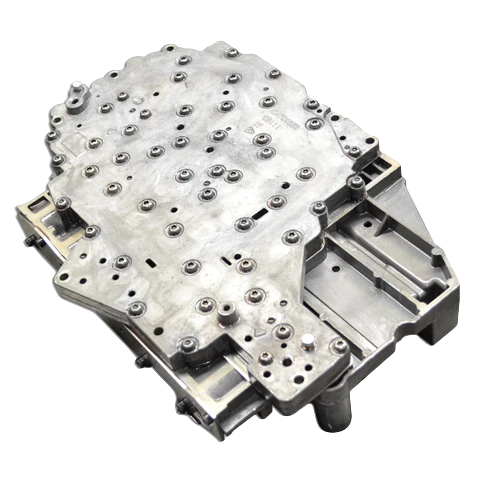

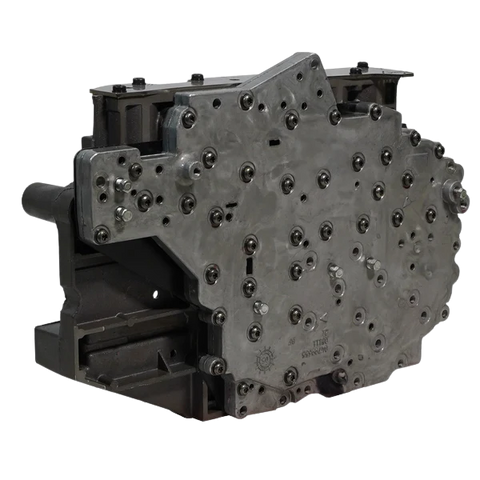

2019–2024 68RFE Performance Valve Body
Valve body is built to fit 2019+ Ram trucks equipped with the 68RFE transmission.
Tuning Compatibility
- Designed to work with transmission tuning up to 225 psi
- Also compatible with stock transmission tuning
Features
- Billet pistons
- Heavy-duty accumulator cover
- New oversize switch valve

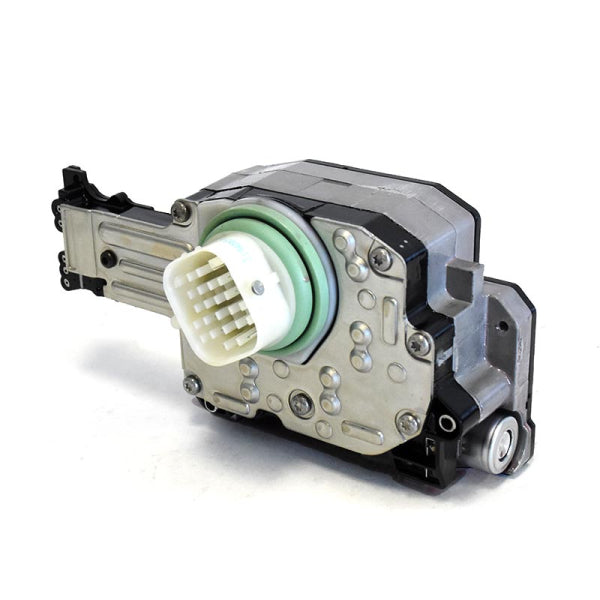

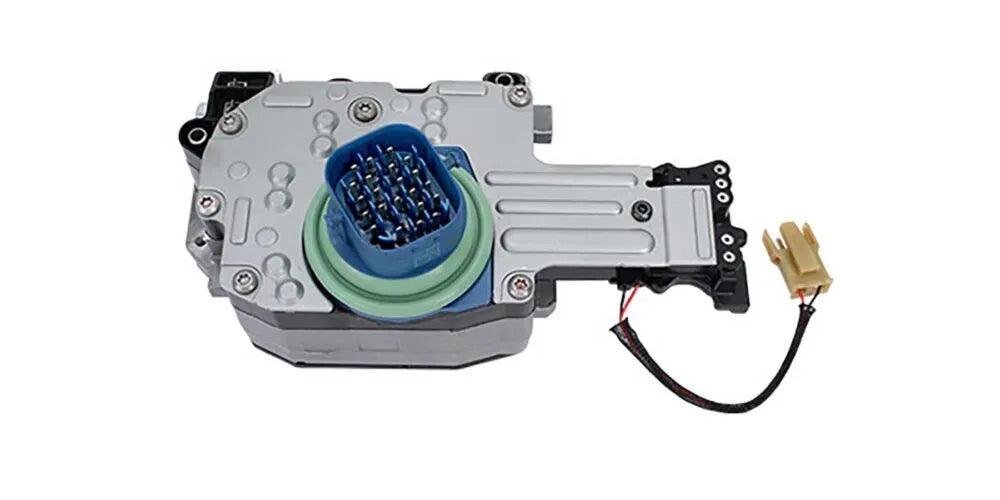

- New Solenoid Pack ( if optioned )
Quality & Assembly
- All valve body parts are flat sanded
- Valve body is vacuum tested
- Aftermarket gaskets installed and torqued twice to ensure no partition leaks
Installation Notes

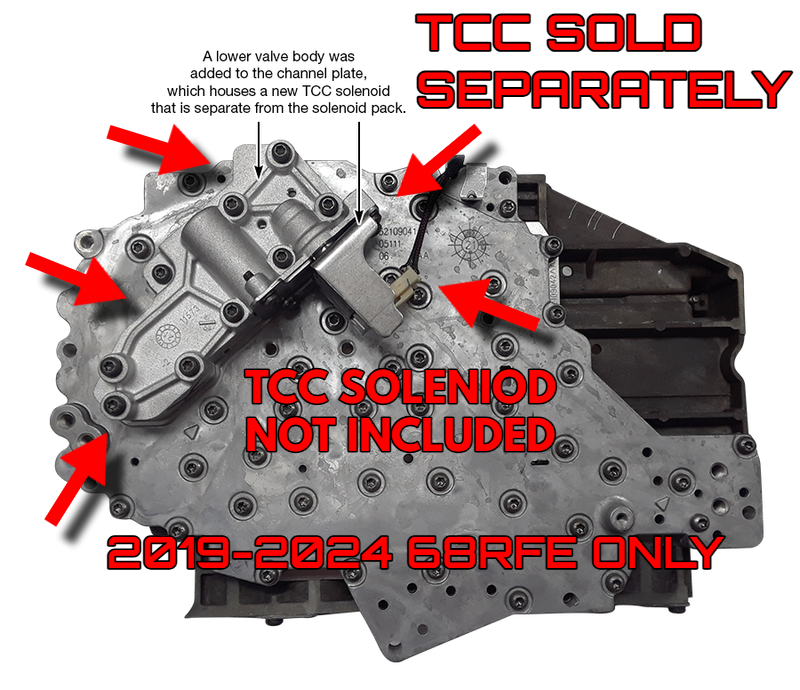

- TCC solenoid is not included – you must reuse the TCC solenoid from your existing solenoid pack. ( DO NOT CONFUSE THE TCC SOLENOID FOR THE VALVE BODY SOLENOID. THESE ARE 2 SEPARATE ITEMS! 2019-2024 ONLY 68RFE )
- No PI curve programming required
- A quick learn procedure is required after installation
You must:
- Remove your torque converter solenoid body (see reference picture)
- Remove the check ball (location shown in the reference picture)
- Transfer both the solenoid body and check ball to the new valve body assembly
- Torque related bolts to 60 in-lbs

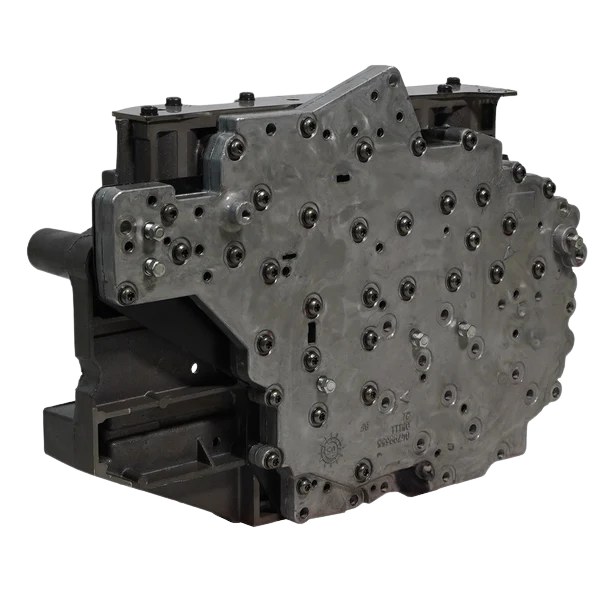

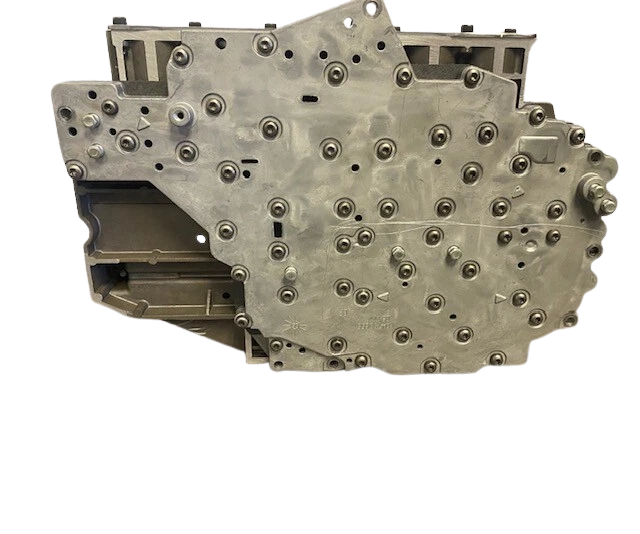

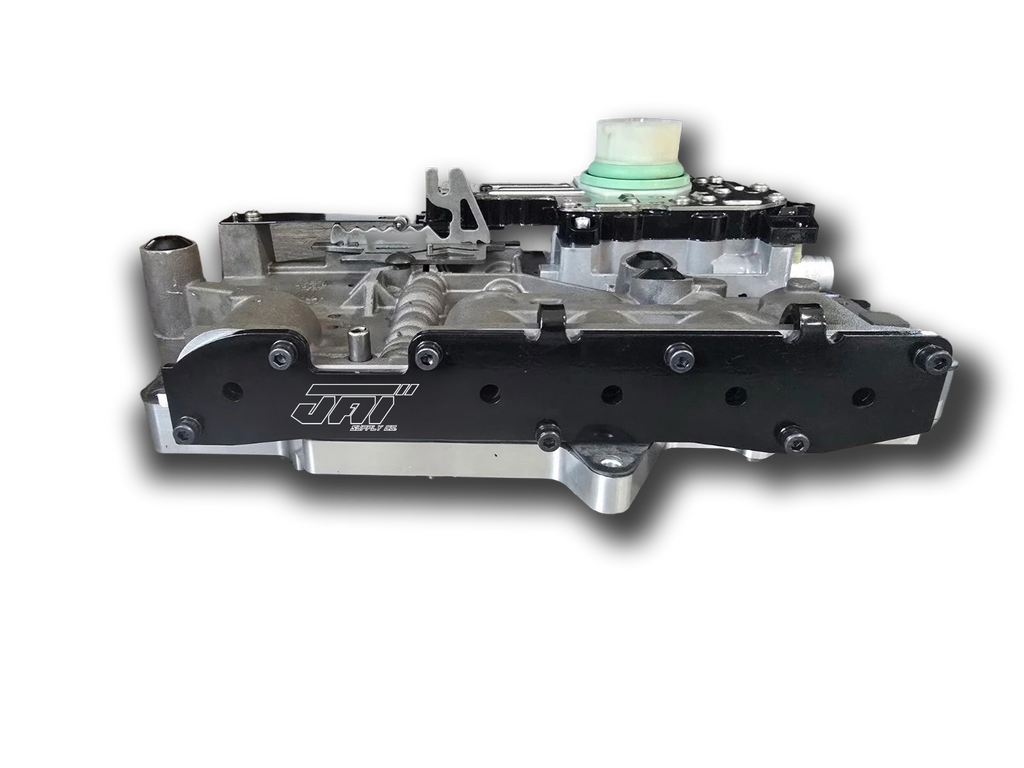

2007.5–2018 68RFE Performance Valve Body
High-performance, high-pressure valve body designed for 2007.5–2018 Ram trucks with the 68RFE transmission.
Tuning & Pressure Recommendations
- Will function in a stock vehicle
- Performs best with transmission tuning or a line pressure booster
- 225 psi is the ideal line pressure setting in the tune
- 180–200 psi settings will also work well with this valve body
Features
- Billet accumulators
- Heavy-duty accumulator cover
- TransGo reverse switch valve
- TransGo oversize switch valve kit
- Gasket-updated separator plate
Quality & Assembly
- All valve body parts are flat sanded
- Valve body is vacuum tested
- Aftermarket gaskets installed and torqued twice to prevent partition leaks
Core Return Policy (07.5–24 Valve Body)
- Core must be in good, reusable condition:
- No broken or cracked parts
- Valve body must be properly bagged to prevent fluid leakage
- Please make sure the valve body is mostly drained of fluid
- If you have any concerns, send us pictures of the core before shipping
Shipping & Documentation
- Core return shipping cost is the customer’s responsibility
- We are not responsible for lost shipments
- Send us a picture of the tracking number once shipped
- Include a copy of your purchase receipt inside the box
WARRANTY
-
Performance valve bodies include a **one-year (12,000-mile) warranty**.
If **engine and transmission tuning** is purchased with the valve body, the warranty is extended to **three years (36,000 miles)**.Electrical components included with some valve bodies—such as sensors, solenoids, and wiring harnesses—are covered by a **90-day warranty**.
- WARRANTY ONLY COVERS VALVE BODY AND RELATED COMPONENTS WE SELL YOU. WARRANTY DOES NOT COVER YOUR ENTIRE TRANSMISSION OR TORQUE CONVERTER NOR THE LABOR TO REMOVE AND INSTALL ANY PARTS!
