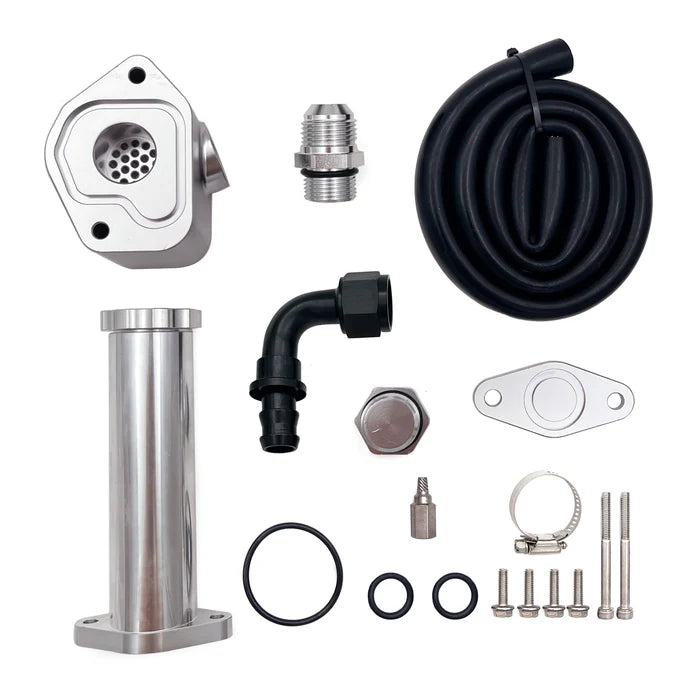

Upgrade your factory crankcase ventilation system with this high-performance L5P CCV Upgrade Kit, designed to solve common failure issues and improve engine reliability for your 2017–2025 Duramax.
What Is the CCV System?
The CCV (Crankcase Ventilation) system is responsible for extracting combustion gases that escape past the piston rings and collect in the crankcase. On the L5P Duramax, the CCV system is integrated into the valve cover and connects to the intake air horn. This setup uses Bernoulli’s Principle to create vacuum and route crankcase gases back through the intake for reburning — a requirement for emissions compliance.
Over time, especially in higher-mileage diesels, excessive blow-by causes oil vapors to be carried into the turbocharger inlet. The engine consumes this oil, which can lead to carbon buildup and reduced efficiency.
Why Upgrade?
The factory CCV system on the L5P is made of plastic and is known to crack or fail over time, allowing boost pressure and hot charge air to enter the intake system improperly. Additionally, the OEM system is non-serviceable — if it fails, the entire driver-side valve cover must be removed, requiring fuel line and injector removal, often totaling 6+ hours of labor.
This upgrade kit eliminates that problem entirely and offers several key improvements:
Key Features & Benefits:

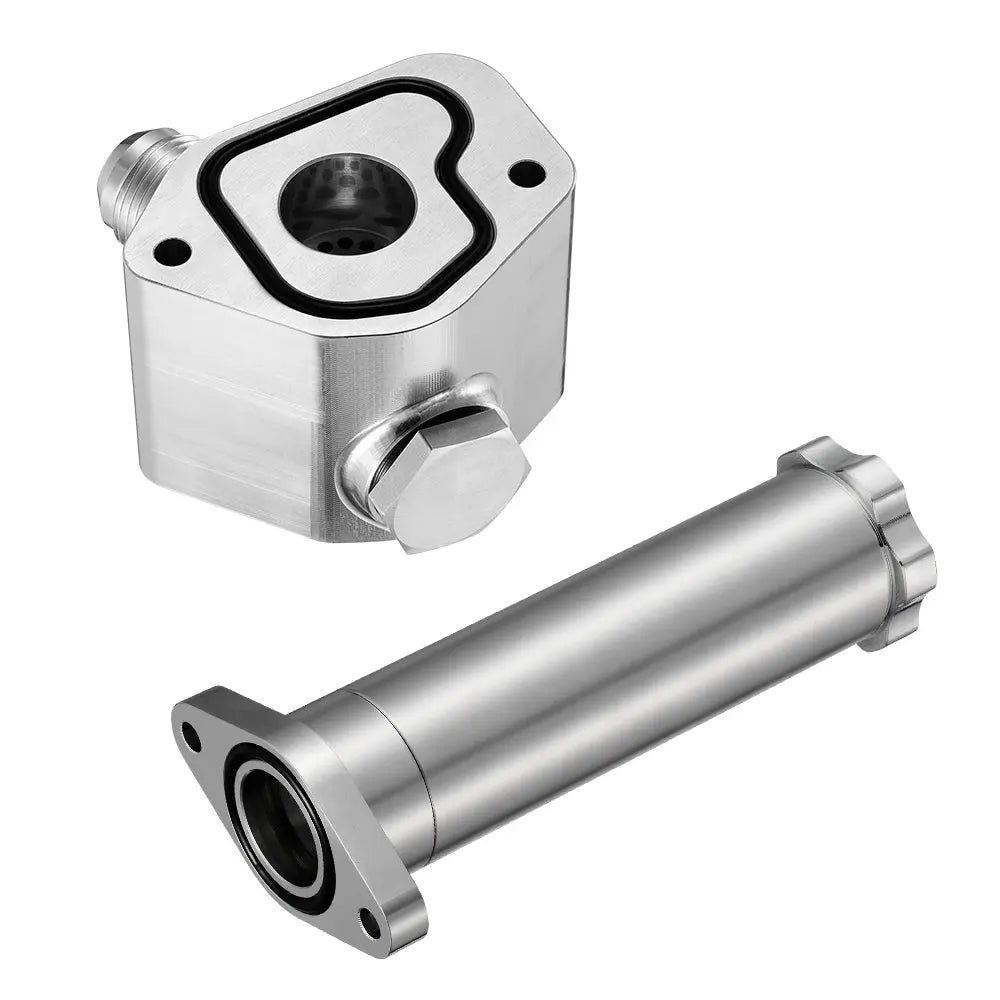

- Direct replacement for the factory CCV system
- Durable construction — eliminates weak factory plastic prone to cracking
-
Integrates dual passive oil separation stages
- Uses proven differential drop technology from marine and heavy-duty diesel applications
- Helps keep intake components free of oil and carbon buildup
-

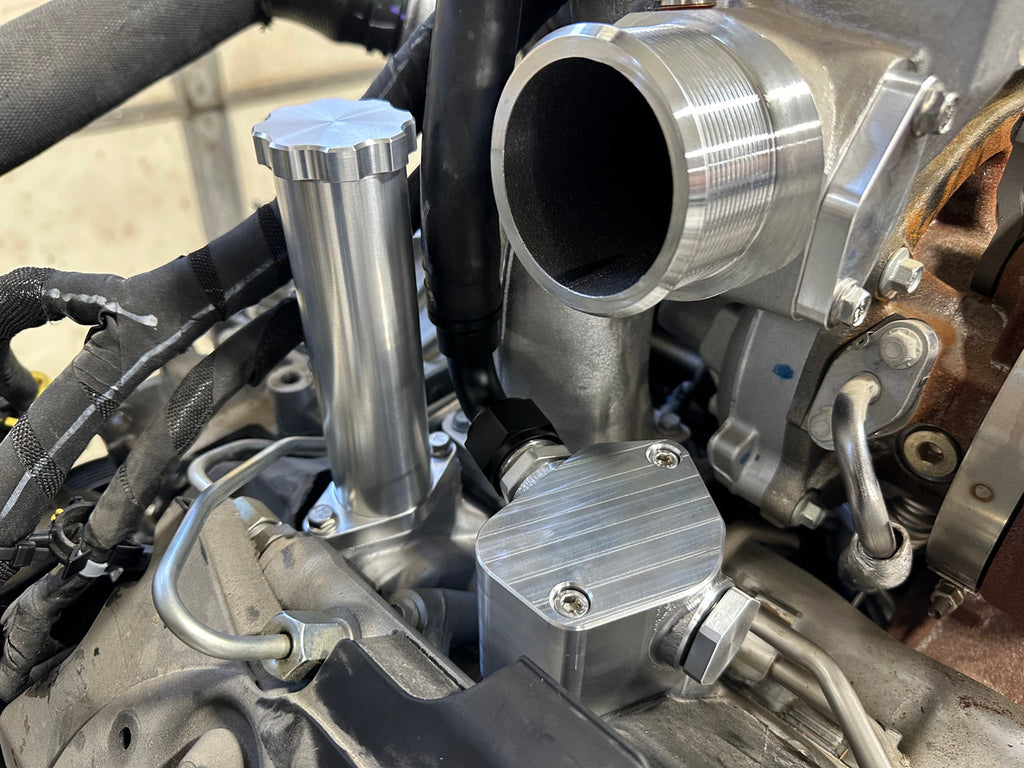

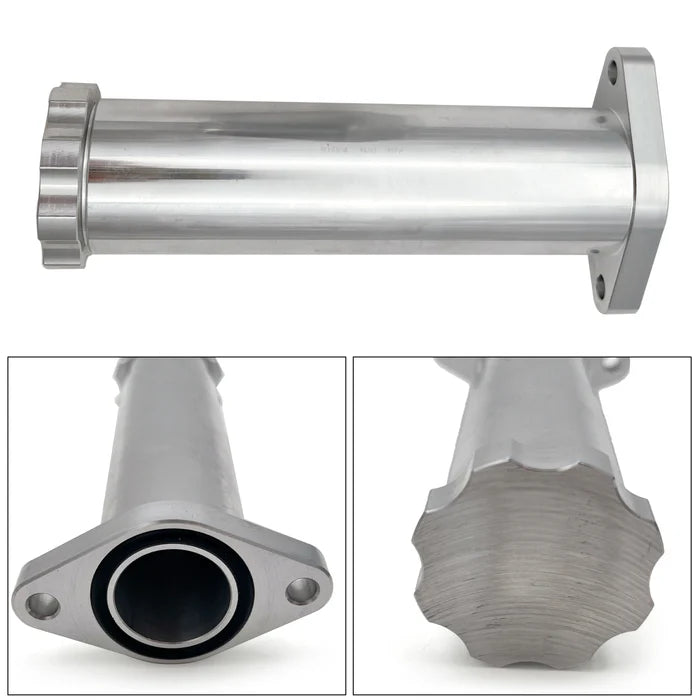

Relocates oil fill port to the front of the engine using a billet standpipe
- Tall enough to clear engine accessories
- Makes filling oil easier, especially with gallon jugs
- Separates oil fill from CCV system for improved safety and cleanliness
- Reduces oil ingestion into the turbocharger and intake manifold
- No tuning required — completely passive system with no moving parts
Installation:
- Install Time: 30–45 minutes
- Mounting: Reuses the 4 factory safety lock screws for secure fitment
- No special tools required
- No tuning or calibration changes needed
Why We Designed It:
-
To eliminate failure-prone factory components.
The stock CCV cannot be serviced, making repairs expensive and time-consuming. This kit eliminates that hassle. -
To improve maintenance and usability.
Relocating the oil fill makes engine service easier and cleaner, especially in performance or work applications.
Compatibility:
- Fits: 2017–2025 L5P Duramax (Silverado & Sierra 2500HD/3500HD)
- Turbo Setup: Compatible with all factory and most aftermarket configurations
